Temperature & Humidity Transmitters · ClimaTRANS

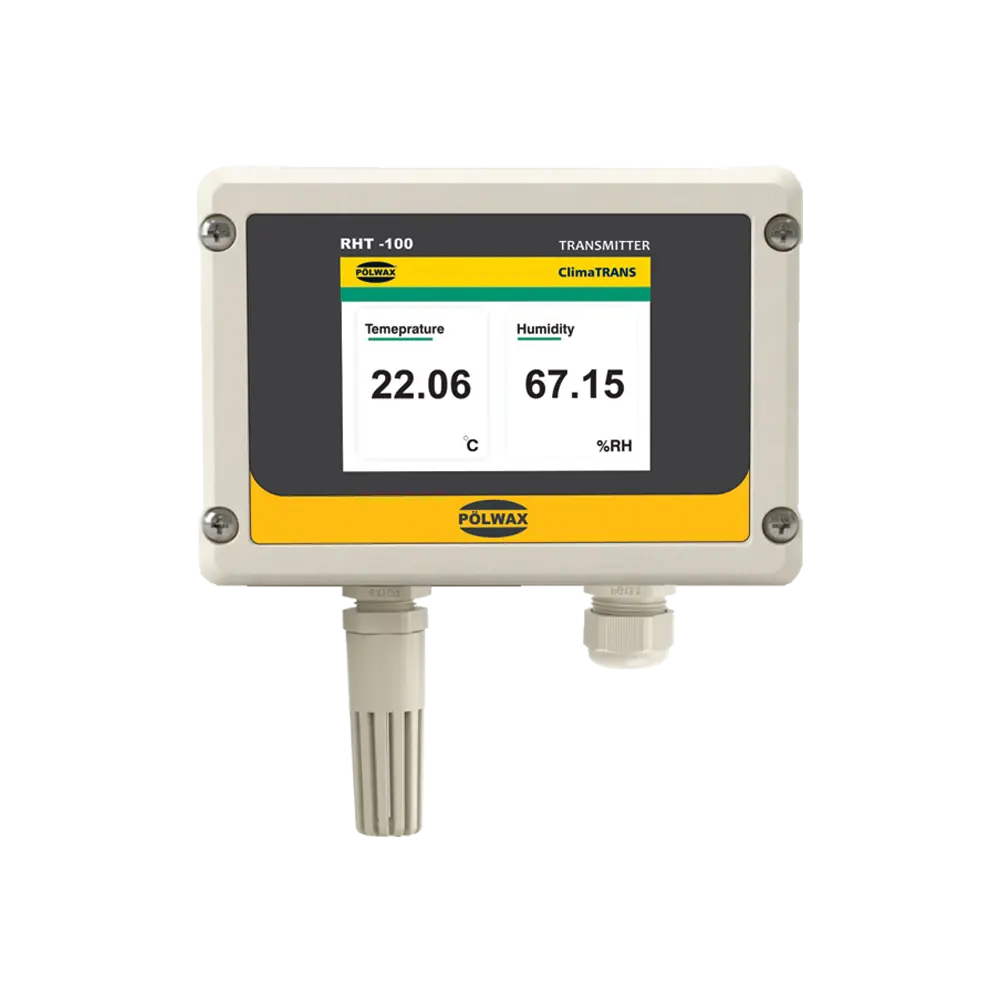

ClimaTRANS RHT100 Temperature & Humidity Transmitter
Model RHT100
Industrial temperature and humidity transmitter with TFT display, RS485 Modbus RTU and wall or duct mounting.
- Accuracy
- ±0.3 °C · ±1.8 % RH
- Output
- RS485 Modbus RTU
- Display
- TFT
- Protection
- IP65
Overview
ClimaTRANS RHT100 is an industrial-grade temperature and humidity transmitter for environmental monitoring in applications where accuracy, stability and consistency matter. A digital sensor measures ambient temperature and relative humidity, shown on a TFT display and transmitted via RS485 Modbus RTU to BMS, PLC, SCADA and monitoring systems.
Key features
- High-accuracy digital temperature & RH sensor
- TFT display for local readings
- RS485 Modbus RTU output
- Wall or duct mounting
- Temperature drift ≤0.1 °C/year
- IP65 housing
Technical specifications
Measurement ranges & outputs
| Parameters | Temperature & humidity |
|---|---|
| Accuracy – temperature | ± 0.3 °C (0 °C to 60 °C) |
| Accuracy – relative humidity | ± 1.8 % RH at 23 °C (0 % to 90 % RH) |
| Measuring units | °C / °F & % RH |
| Temperature drift | ≤0.1 °C/year |
| Output | RS485 Modbus RTU |
General
| Display | TFT display |
|---|---|
| Language | English |
Power supply & connectivity
| Supply voltage | 12 VDC to 30 VDC; maximum consumption 70 mA ± 10 % @ 24 Vdc |
|---|
Installation & environment
| Mounting | Wall mount / duct mount |
|---|---|
| Dimensions | 120 × 80 × 55 mm |
| Protection standard | IP65 |
| Operating temperature | -20 °C to +60 °C |
| Storage temperature | -40 °C to +85 °C |
| Operating humidity | 0–95 % RH (non-condensing) |
| Colour (standard) | White grey |
| Media compatibility | Air, non-combustible, non-corrosive gases |
Specifications are subject to change. Please check the current datasheet or ask our team before ordering.
Applications & industries
Scope of supply
- Calibration certificate
- GUI software
- Manual
Product enquiry
Request a quote for ClimaTRANS RHT100 Temperature & Humidity Transmitter
Tell us about your application — what you need to measure, the range, number of points and where the instrument will be installed. Our team will reply with a recommendation and quotation.
- Technical advice on model and options
- Quotation for your quantity
- Datasheets and documentation on request
