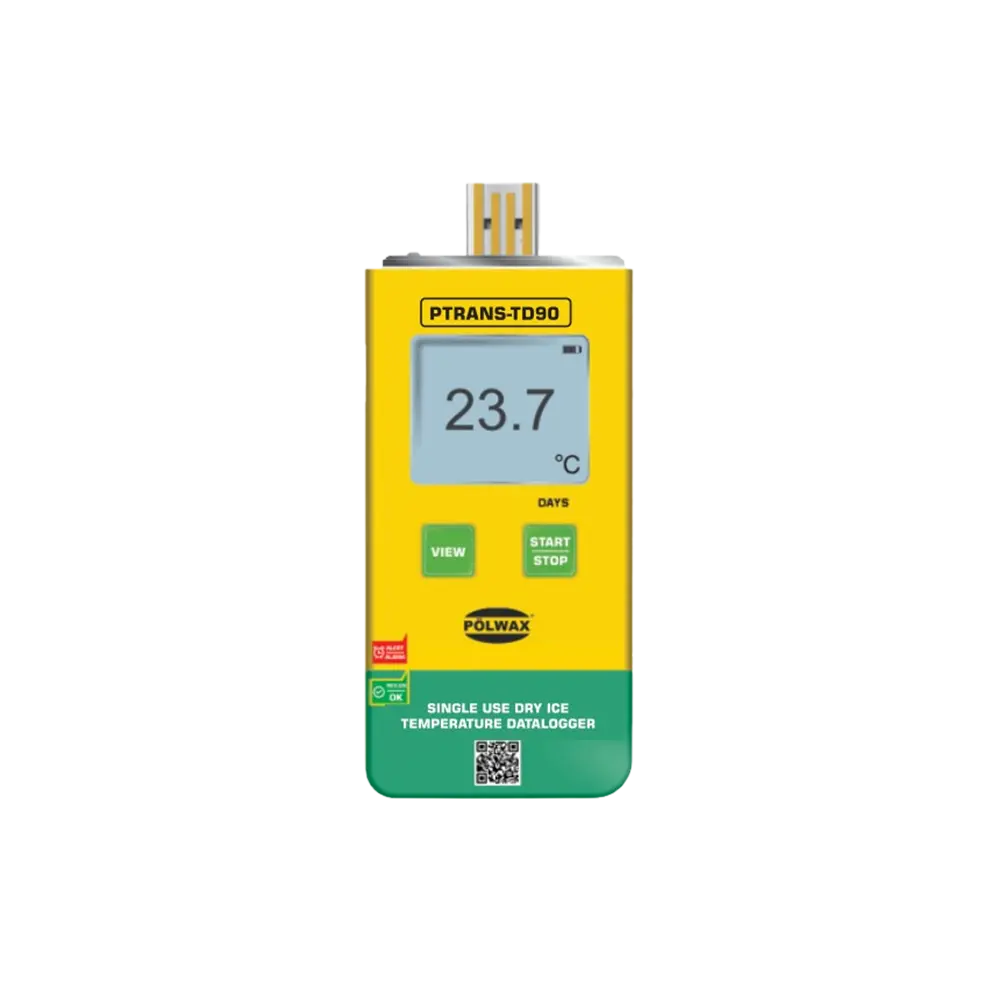

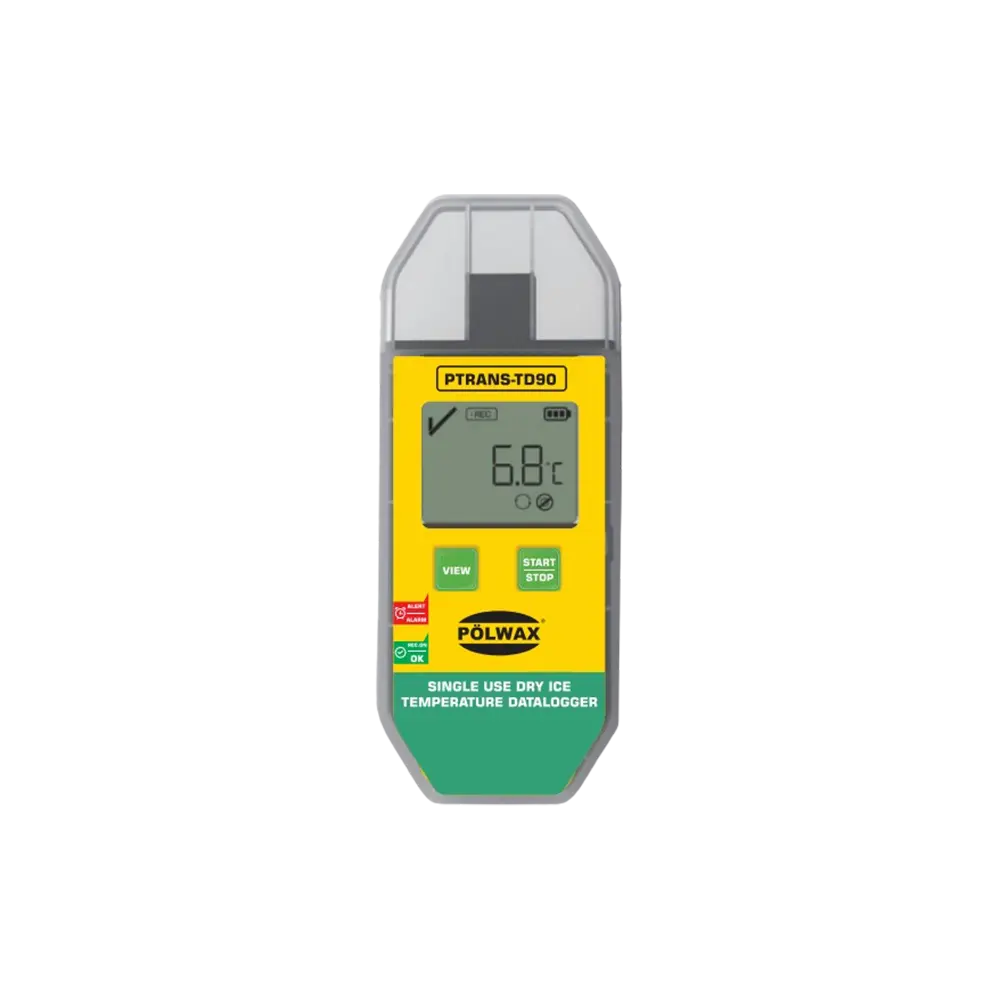

POLWAX PTRANS TD90 Single-Use Dry Ice Datalogger

Single-Use Dataloggers · PTRANS Series

PTRANS TD90 Single-Use Dry Ice Datalogger

Model PTRANS TD90

Single-use temperature datalogger with display for dry-ice shipments, operating from -90 °C to 70 °C.

Range
-90 °C ~ 70 °C
Memory
Up to 33,000 points
Battery
3.6 V lithium
Interface
USB 2.0
Request a Quote Request Datasheet

Overview

The POLWAX PTRANS TD90 is a single-use temperature datalogger with display for shipments packed in dry ice. It operates from -90 °C to 70 °C, stores up to 33,000 readings and generates a PDF and/or CSV report when connected to a USB port.

Configuration is factory-set to the customer's request; recording is started manually.

Key features

  • Operating range -90 °C to 70 °C for dry-ice shipments
  • Display and LED status indication
  • Up to 33,000 data points
  • PDF / CSV report via USB 2.0
  • 3.6 V lithium battery

Technical specifications

Measurement ranges & outputs

Measurement ranges and outputs
Input parametersTemperature
Operation temperature-90 °C ~ 70 °C
Resolution0.1 °C

General

General specifications
Product typeSingle-use dry ice temperature data logger
DisplayWith display
ConfigurationFactory set as per customer request
MemoryUp to 33,000 points
Logging interval1 minute – 24 hours (default 5 minutes)
Start delay0 minutes – 24 hours (default 10 minutes)
Start modeManual start
Report formatPDF / CSV / PDF & CSV (optional, configured before leaving the factory)
LED indicatorGreen (recording, OK), red (alarm)

Power supply & connectivity

Power supply and connectivity
ConnectionUSB 2.0
Battery type3.6 V lithium battery
Battery lifeUp to 60 days (1 year storage / 60 days useful life)

Installation & environment

Installation and environment
Protection classIP65
Dimensions105 × 40 × 10 mm
Weight30 g

Specifications are subject to change. Please check the current datasheet or ask our team before ordering.

Applications & industries

  • Dry-ice shipments
  • Pharmaceutical & biotech samples
  • Ultra-low temperature transport

Scope of supply

  • Datalogger in sealed plastic pouch
  • Test certificate
  • Instruction manual
