POLWAX PTRANS Single-Use Datalogger

Single-Use Dataloggers · PTRANS Series

PTRANS Single-Use Datalogger

Model PTRANS-T10 / TD10 / T20 / RH20

Single-use USB temperature and temperature/humidity loggers for shipments: start with one button, plug into USB to get the report.

Range
-30 to 70 °C (RH20: + 0–100 % RH)
Accuracy
±0.4 °C @ -10~40 °C
Memory
Up to 33,000 points
Interface
USB 2.0
Request a Quote Request Datasheet Polwax Config web application (opens in a new tab)

Overview

PTRANS single-use dataloggers record temperature — and humidity on the RH20 — during transport and storage of temperature-sensitive goods. Recording parameters are configured before use, the logger is started with a press of the START button, and plugging it into a USB port produces the report without additional software.

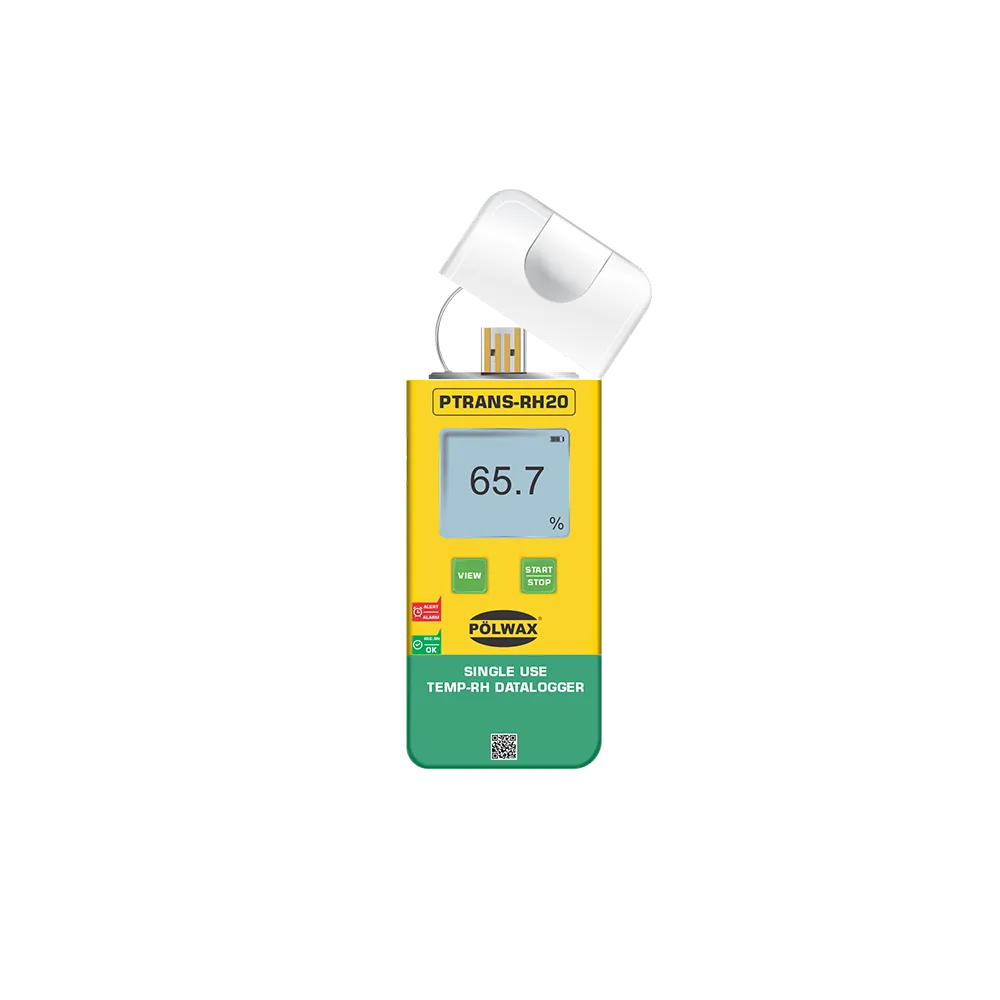

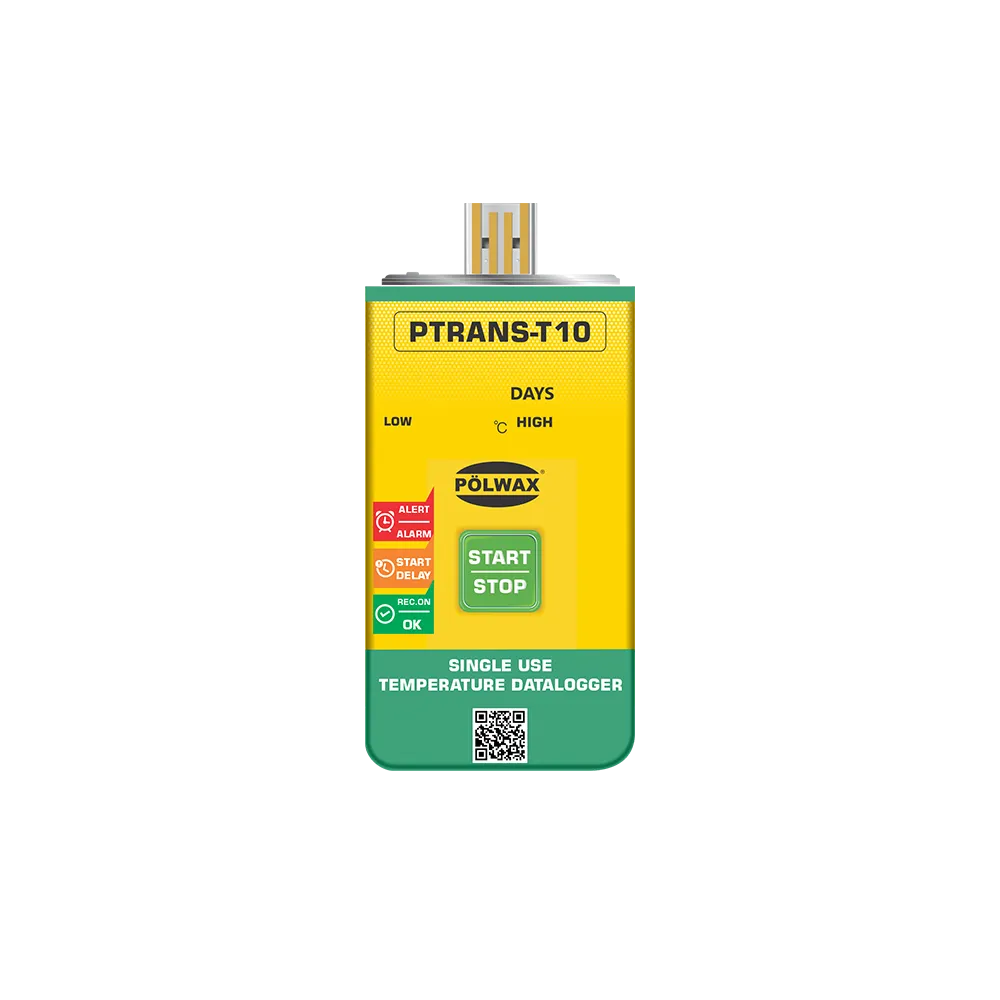

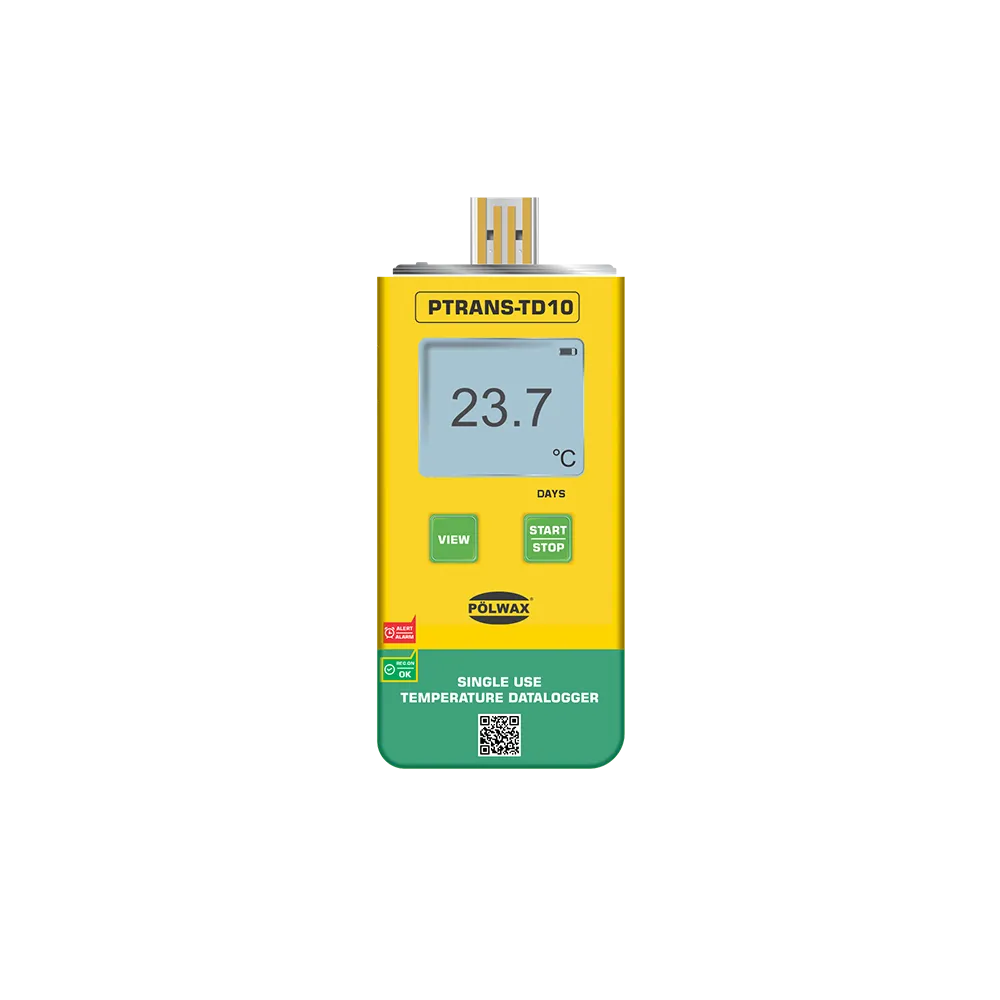

Four versions are available: PTRANS-T10 (without display), PTRANS-TD10 and PTRANS-T20 (with display) for temperature, and PTRANS-RH20 for temperature and humidity.

Key features

  • Single-use loggers for one-way shipments
  • Plug-and-play report generation via USB 2.0
  • Start with the START button (RH20: manual start & stop)
  • LED status indication: green (recording, OK), red (alarm)
  • Up to 33,000 data points
  • Configuration via the Polwax Config web application

Technical specifications

Measurement ranges & outputs

Measurement ranges and outputs
Input parametersT10 / TD10 / T20: Temperature · RH20: Temperature, Humidity
Measuring range-30 to 70 °C (RH20: -30 to 70 °C & 0–100 % RH)
Measurement accuracy – T10 / TD10 / T20±0.4 °C @ -10~40 °C, ±0.8 °C @ -30~-10 °C & 40~70 °C
Measurement accuracy – RH20±0.4 °C (±2.5 % RH @ 20–80 % RH, ±4 % RH @ other)
Resolution0.1 °C (RH20: 0.1 % RH)

General

General specifications
MemoryUp to 33,000 points
Logging interval1 minute – 24 hours (selectable)
Start delay0 minutes – 24 hours (selectable)
Start modeManual start (RH20: manual start & stop)
Report formatT20 / RH20: PDF / CSV / PDF & CSV (configured before leaving the factory)
LED indicatorGreen (recording, OK), red (alarm)
LanguageEnglish

Power supply & connectivity

Power supply and connectivity
ConnectionUSB 2.0
ConfigurationWeb-based application: config.polwax.it
Battery type – T20 / RH203.0 V CR2450
Battery lifeUp to 2 years (1 year storage / 1 year useful life) @ 25 °C

Installation & environment

  • Place the logger with the goods; press and hold START for 3 seconds to begin recording (PTRANS-T10 instruction manual).
  • Plug the logger into a computer USB port to stop it and open the report from the "POLWAX" drive.
Installation and environment
Protection classT10 / TD10: IP67 · T20 / RH20: IP65 (acrylic shell)

Models

ModelPart codeParametersDisplayDimensionsWeight
PTRANS-T100394 0010TemperatureWithout display70 × 33 × 7 mm23 g
PTRANS-TD100394 0011TemperatureWith display85 × 34 × 7.5 mm23 g
PTRANS-T200394 0020TemperatureWith display105 × 40 × 10 mm30 g
PTRANS-RH200394 0030Temperature, HumidityWith display105 × 40 × 10 mm30 g

Specifications are subject to change. Please check the current datasheet or ask our team before ordering.

Applications & industries

  • Pharmaceutical storage & distribution
  • Food & perishable goods
  • Blood banks
  • Logistics & refrigerated transport
  • Biotech samples
  • Fruit & seafood export

Scope of supply

  • Datalogger in sealed plastic pouch
  • Test certificate
  • Instruction manual
