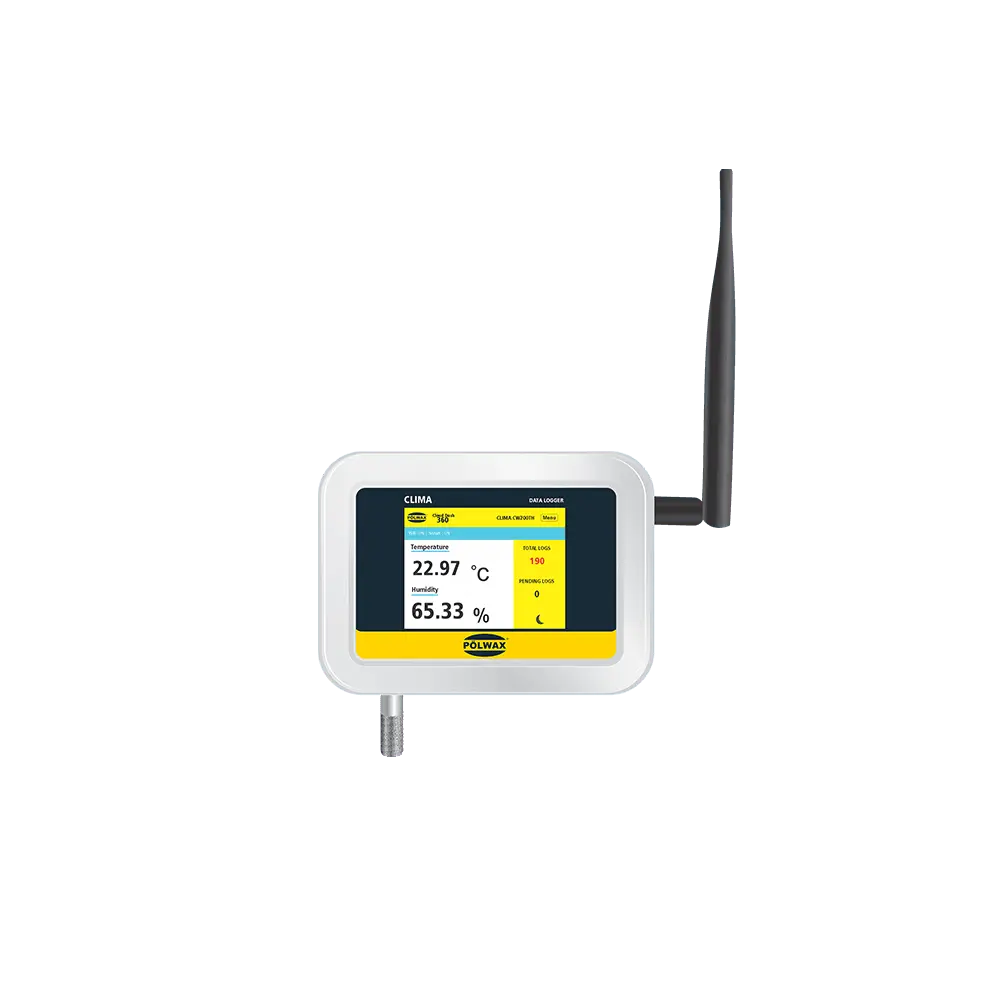

POLWAX CLIMA Ethernet Datalogger

WiFi / GSM / Ethernet Dataloggers · CLIMA Series

CLIMA Ethernet Datalogger

Model Clima CE100T / CE200T / CE400T / CE200TH / CE400TH

1, 2 or 4-channel temperature and temperature/humidity datalogger with Ethernet communication and colour touch-screen display.

Channels
1 / 2 / 4
Communication
Ethernet
Accuracy
±0.3 °C / ±2 % RH
Protection
IP65
Request a Quote Request Datasheet

Overview

The CLIMA Ethernet datalogger connects to a wired LAN for stable, continuous data transfer in buildings, laboratories and production areas. Data and alarms can be followed on the optional CloudDASH360 cloud dashboard.

Versions with 1, 2 or 4 channels are available for temperature (external Pt100 sensor, -100 to 400 °C) or temperature and humidity (-40 to +70 °C, 0–100 % RH). The logger has a TFT colour touch-screen display, password-protected configuration and an IP65 enclosure for wall or table mounting.

Key features

  • Real-time data monitoring
  • Ethernet data communication
  • TFT colour touch-screen display
  • Temperature or temperature & humidity versions with 1, 2 or 4 channels
  • Password-protected configuration
  • Wall or table mounting, IP65 enclosure

Technical specifications

Measurement ranges & outputs

Measurement ranges and outputs
Number of channels1 / 2 / 4
Input parametersTemperature (T models) · Temperature – Humidity (TH models)
Measuring range – T modelsExternal sensor Pt100 (-100 to 400 °C)
Measuring range – TH modelsTemperature: -40 to +70 °C · Humidity: 0 – 100 % RH
Other inputsTemp + RH / RTD Pt100 / Thermocouple / 4-20 mA / 0-20 mA / 0-10 V / 0-5 V / 0-1 V / Digital
Thermocouple typesK, J, N, R, S, T
ResolutionTemp: 0.01 / RH: 0.01
Sensor accuracyTemperature: ±0.3 °C / Humidity: ±2 % (at 5–95 %)

General

General specifications
DisplayTFT colour touch-screen display
Password protectionAccess to configuration is allowed only after the user has entered a password
File nameName tag, prefixed with date/time
Report format.PDF / .CSV / .XLSX
Desktop softwarePOLWAX_P-View (suitable for Win10 / Win10 Pro)
Cloud dashboard (optional)POLWAX CloudDASH360 – web app / mobile app (Android + iOS)
LanguageEnglish

Power supply & connectivity

Power supply and connectivity
CommunicationsEthernet
Power supply24 V DC (adaptor)

Installation & environment

  • Wall or table mounting.
  • Internal sensor, or external sensor on a 2 m or 5 m cable.
Installation and environment
MountingWall mount / Table mount
SensorInternal or external sensor (2 m or 5 m cable)
Sensor filterABS (standard) / Ceramic / SS (optional)
Protection classIP65
WeightApprox. 200 g

Models

ModelPart codeChannelsParametersMeasuring range
Clima CE100T0399 31111TemperatureExternal sensor Pt100 (-100 to 400 °C)
Clima CE200T0399 32112TemperatureExternal sensor Pt100 (-100 to 400 °C)
Clima CE400T0399 34114TemperatureExternal sensor Pt100 (-100 to 400 °C)
Clima CE200TH0399 32212Temperature – HumidityIntegrated sensor: -40 to +70 °C, 0 – 100 % RH
Clima CE400TH0399 34214Temperature – HumidityExternal sensor: -40 to +70 °C, 0 – 100 % RH

Specifications are subject to change. Please check the current datasheet or ask our team before ordering.

Applications & industries

  • Agriculture
  • Storage & warehouses
  • Food & beverage
  • Museums & buildings
  • Laboratories
  • Clean rooms

Scope of supply

  • Calibration certificate
  • Instruction manual
  • Power adaptor
  • Antenna
