Electronic Freeze Indicators · PolSENSE

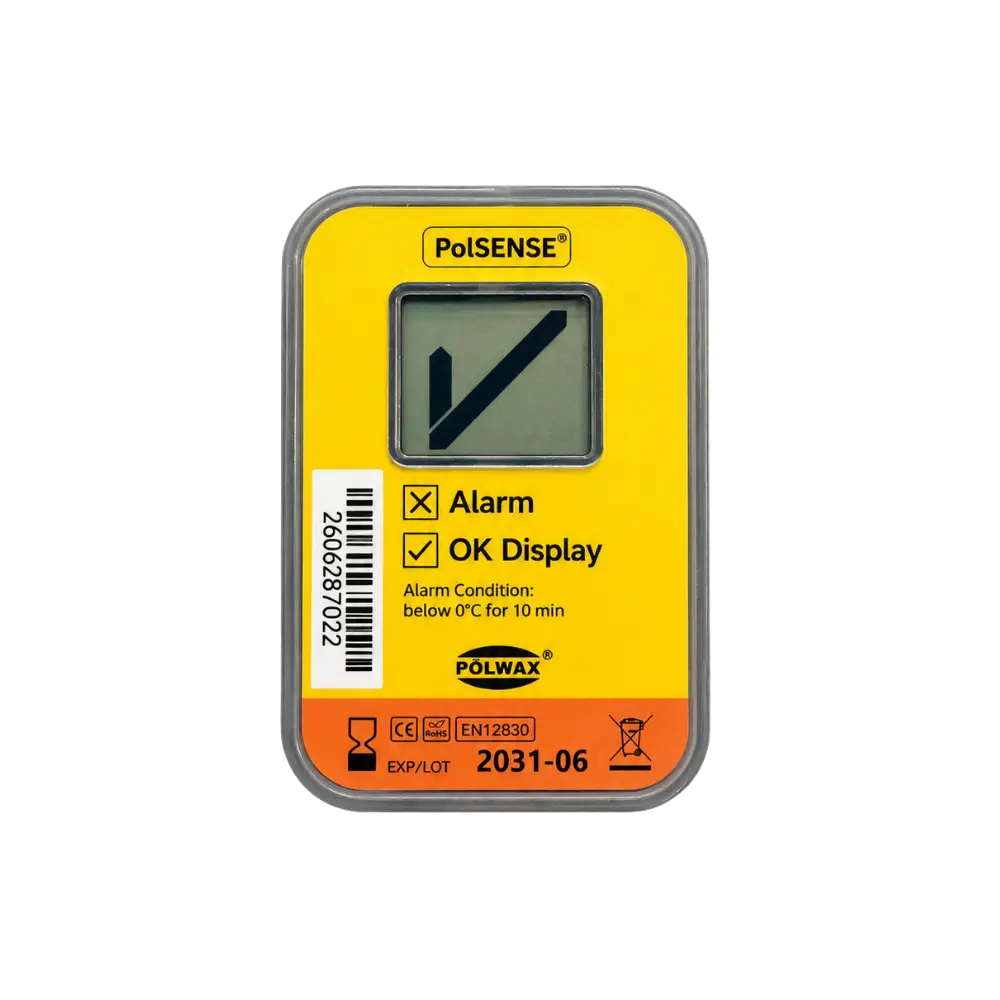

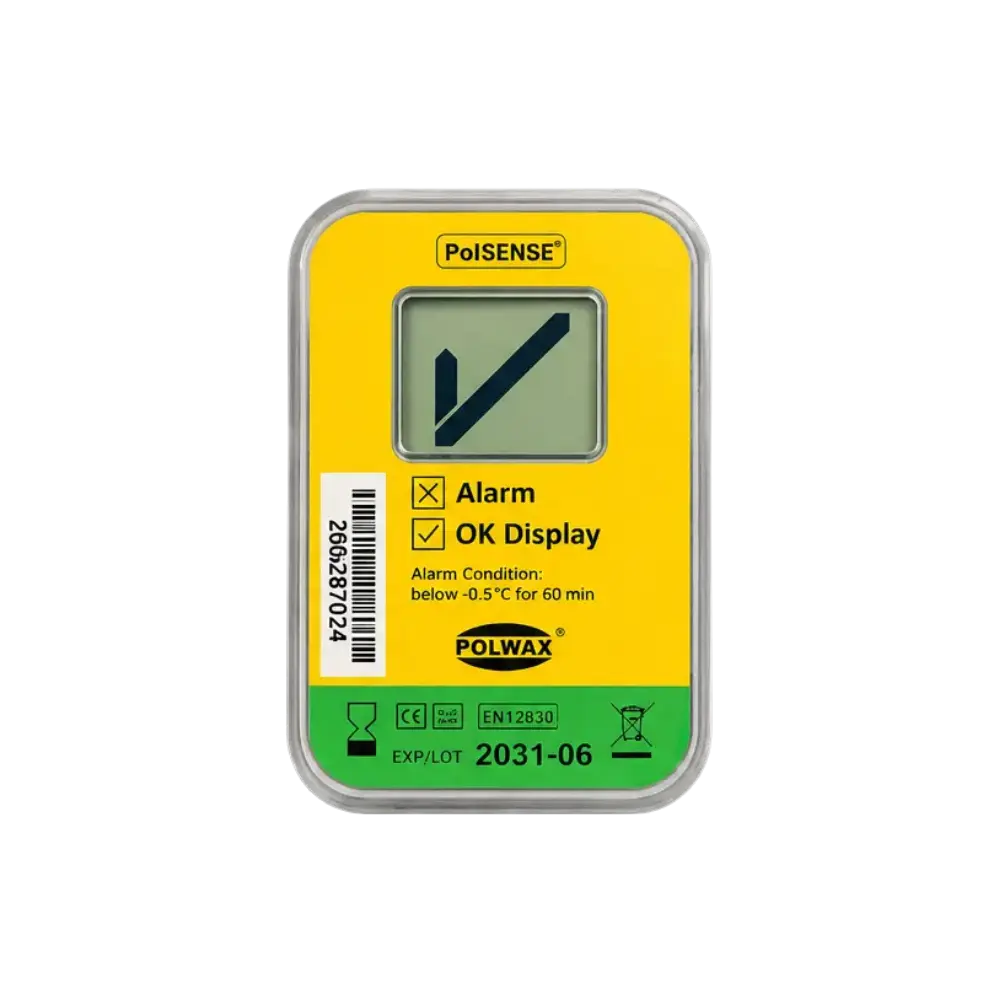

PolSENSE Electronic Freeze Indicator
Model PolSENSE-G / PolSENSE-O
Compact electronic freeze indicator that is always active and shows √ or × when goods have been exposed to freezing.
- Temp. accuracy
- ±0.3 °C typ.
- Protection
- IP67
- Shelf life
- Up to 5 years
- Weight
- 23 g
Overview
PolSENSE is a compact electronic freeze indicator for monitoring freeze-sensitive goods such as vaccines, pharmaceuticals, biologics and medical samples, food and research materials during storage and transport. It is always active — no activation is required — and shows at a glance whether the alarm condition has occurred.
Alarm settings are factory preset. PolSENSE can be used as often as required during its shelf life as long as the alarm condition has not been shown.
Key features
- Always active — no activation required
- Factory-preset freeze alarm
- Clear √ / × indication
- IP67 transparent ABS housing
- Up to 5 years operating & shelf life
Technical specifications
Measurement ranges & outputs
| Temperature accuracy | ±0.3 °C typ.; ±0.6 °F typ. |
|---|---|
| Time measurement accuracy | ±5 % typ. at 0 °C / 32 °F |
General
| Product type | Electronic freeze indicator |
|---|---|
| Display | √ / × indication |
| Activation | Always active |
| Stopping | No stop function |
| Configuration | Factory preset |
| Use | Can be used as often as required during the shelf life as long as the alarm condition has not been shown |
| Operating & shelf life | Up to 5 years (expiry date printed on label) |
| Label | Barcode included |
Power supply & connectivity
| Battery | Lithium coin cell (CR2450) |
|---|
Installation & environment
- Attach to the shipment or package; 3M adhesive tape according to customer requirement.
| Protection class | IP67 |
|---|---|
| Shell material | Transparent ABS plastic |
| External dimensions | 55 mm × 40 mm × 13 mm |
| Weight | 23 g |
| Operating temperature | −20 °C to +55 °C / −4 °F to +131 °F |
| Storage conditions | +4 °C to +50 °C / +40 °F to +122 °F |
Specifications are subject to change. Please check the current datasheet or ask our team before ordering.
Applications & industries
Product enquiry
Request a quote for PolSENSE Electronic Freeze Indicator
Tell us about your application — what you need to measure, the range, number of points and where the instrument will be installed. Our team will reply with a recommendation and quotation.
- Technical advice on model and options
- Quotation for your quantity
- Datasheets and documentation on request
