Vibration Sensors · VibeSENSE

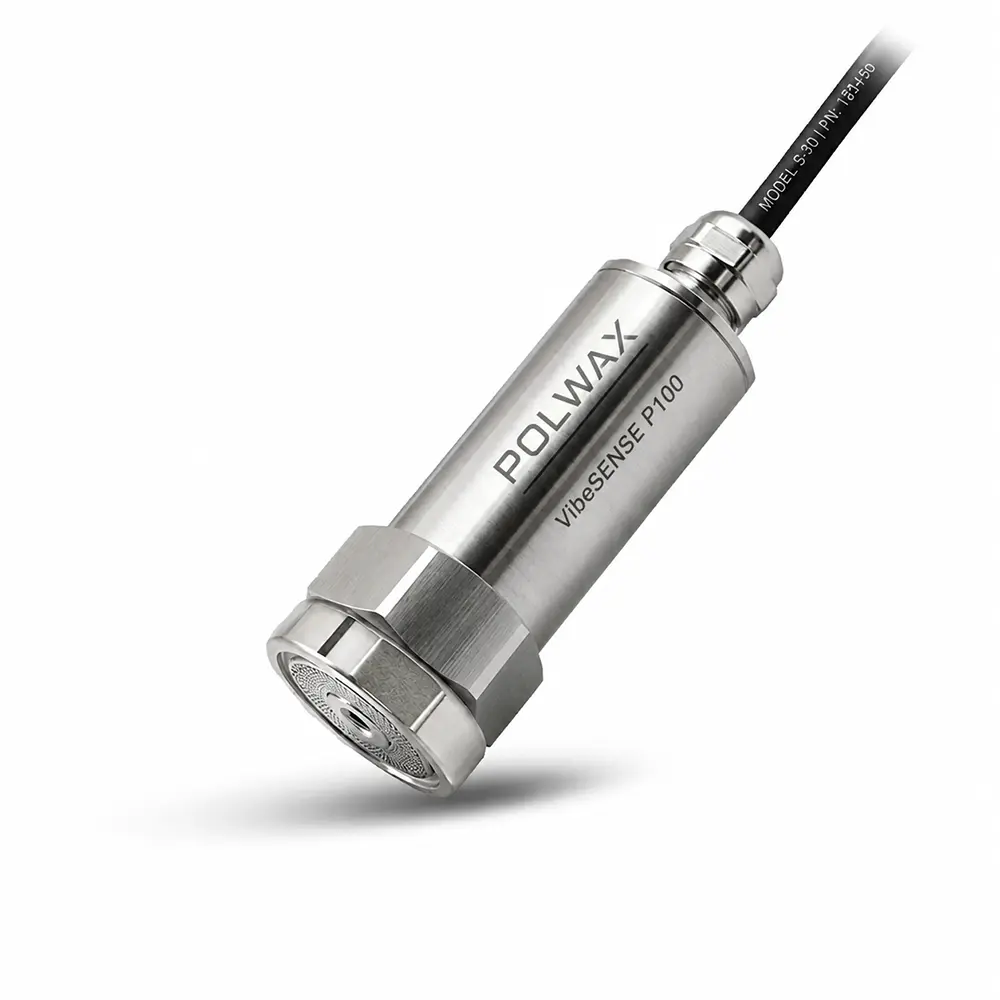

VibeSENSE P100 Smart Vibration Sensor
Model VibeSENSE P100
Industrial vibration sensor measuring velocity and acceleration (RMS) for monitoring motors, pumps, fans and machinery.
- Velocity
- 0 – 50 mm/s
- Acceleration
- 0 – 16 g
- Outputs
- 4–20 mA / 0–10 V / RS485
- Protection
- IP67
Overview
The POLWAX VibeSENSE P100 is an industrial vibration sensor for continuous monitoring of rotating and critical machinery. It measures vibration velocity and acceleration (true RMS) and outputs 4–20 mA, 0–10 V or RS485 for integration with PLC, BMS and monitoring systems.
Key features
- True RMS velocity and acceleration measurement
- Frequency range 10 Hz – 5 kHz (up to 10 kHz optional)
- 4–20 mA / 0–10 V / RS485 output
- Stud, magnetic or adhesive mounting
- IP67 stainless steel / aluminium housing
Technical specifications
Measurement ranges & outputs
| Sensor type | MEMS / piezoelectric |
|---|---|
| Measurement | Velocity / acceleration (RMS) |
| Velocity range | 0 – 50 mm/s |
| Acceleration range | 0 – 16 g |
| Frequency range | 10 Hz – 5 kHz (up to 10 kHz optional) |
| Accuracy | ±1.5 % FS |
| Sensitivity | 100 mV/g (typical) |
| Response time | < 1 second |
| Axis | Single axis |
| Output options | 4–20 mA / 0–10 V / RS485 |
Power supply & connectivity
| Supply voltage | 12 – 30 V DC |
|---|---|
| Power consumption | < 1.5 W |
| Connector | M12 / cable |
Installation & environment
- Mount directly on the machine with a stud, magnet or adhesive.
- Connect via M12 connector or cable.
| Mounting | Stud / magnetic / adhesive |
|---|---|
| Housing material | Stainless steel / aluminium |
| Protection class | IP67 |
| Operating temperature | -40 °C to +80 °C |
| Storage temperature | -40 °C to +100 °C |
| Humidity | 0 – 95 % RH (non-condensing) |
Specifications are subject to change. Please check the current datasheet or ask our team before ordering.
Applications & industries
Product enquiry
Request a quote for VibeSENSE P100 Smart Vibration Sensor
Tell us about your application — what you need to measure, the range, number of points and where the instrument will be installed. Our team will reply with a recommendation and quotation.
- Technical advice on model and options
- Quotation for your quantity
- Datasheets and documentation on request
Related POLWAX products
All sensors
CloudWAY Series
CloudWAY IoT Gateway
Model CloudWay GT400 / GT800
4 or 8-channel IoT gateway for 4–20 mA and Modbus RS485 instruments with WiFi, Ethernet or GSM communication.
- Channels
- 4 (GT400) / 8 (GT800)
- Inputs
- 4–20 mA / Modbus RS485
- Communication
- WiFi / Ethernet / GSM
- Mounting
- Wall / DIN rail
Applications: Agriculture · Automotive · Biotech
MOTUS Series
MOTUS MR800 Mobile Datalogger
Model MR800 / MR800+ / MR800PRO
Portable 8-channel datalogger with universal inputs, 3.5" touch screen and USB/RS485 communication — Ethernet and WiFi versions available.
- Channels
- 8
- Inputs
- RTD Pt100, TC, 4-20 mA, 0-10 V
- Accuracy
- ± 0.25 % of FS
- Display
- 3.5" touch screen
Applications: Warehouses · Mining · Hydrophore stations
DPT Series

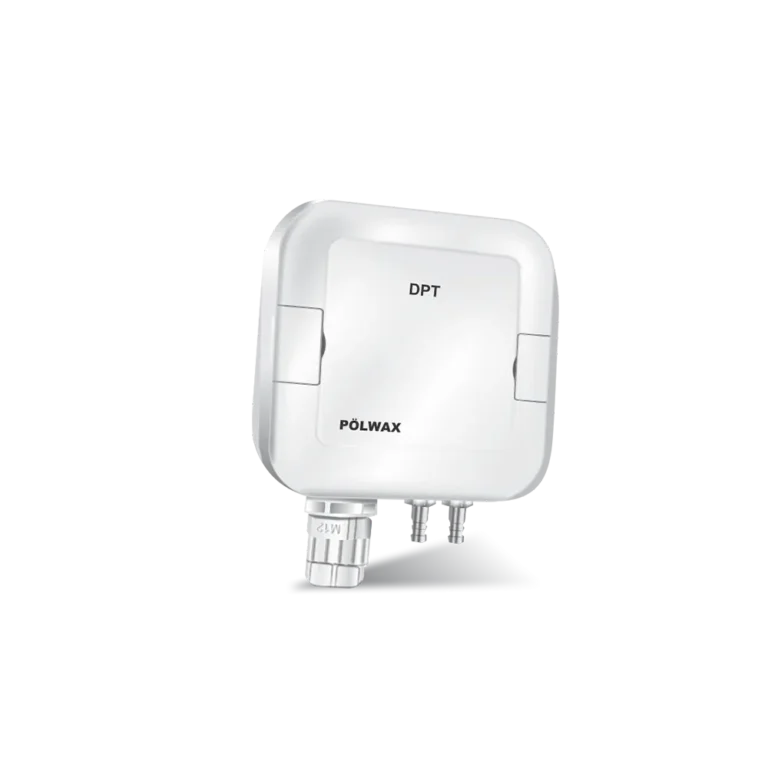

DPT50 WM High-Precision Differential Pressure Transmitter
