Multi-Use Dataloggers · Multi-Use USB Dataloggers

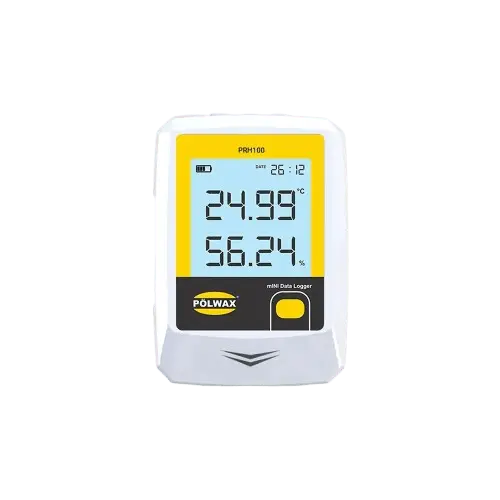

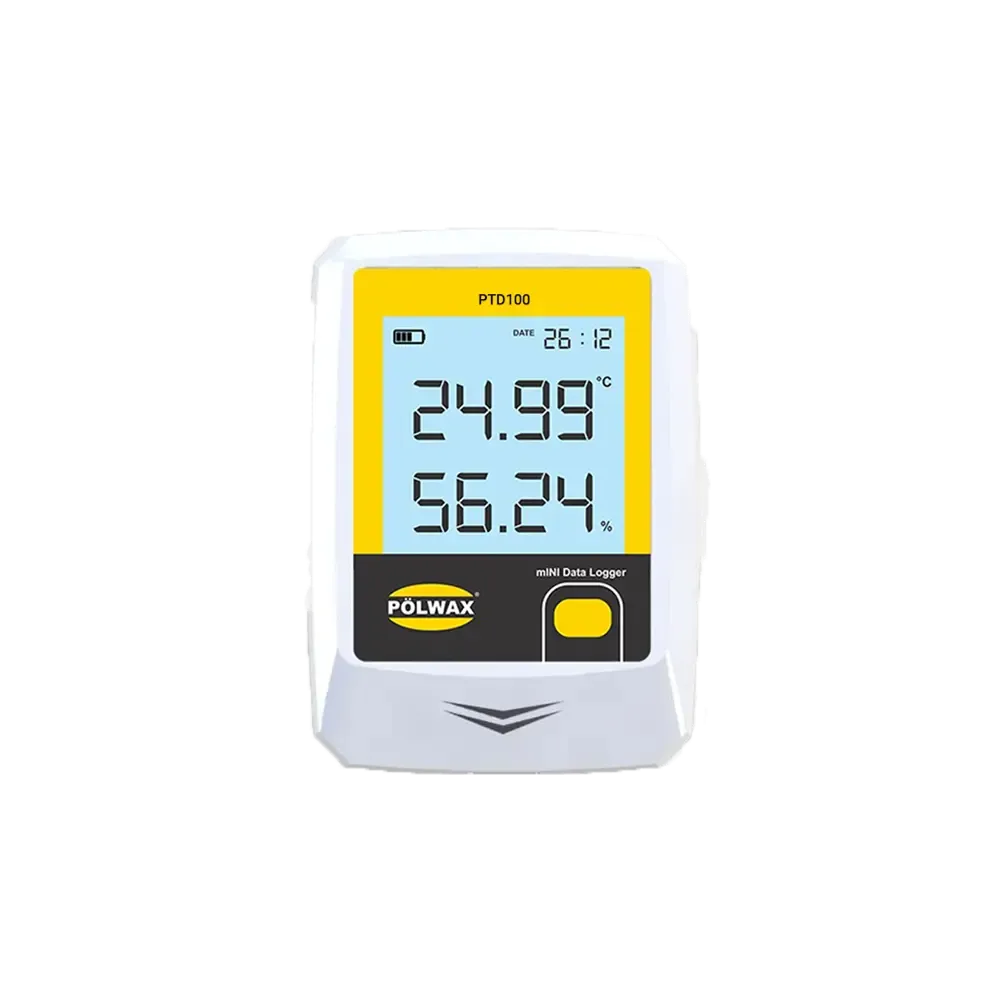

PTD100 / PRH100 Multi-Use Mini Datalogger
Model PTD100 / PRH100
Compact multi-use temperature (PTD100) and temperature/humidity (PRH100) dataloggers with display and replaceable battery.
- Range
- -30 to 70 °C (PRH100: + 0–100 % RH)
- Accuracy
- ±0.4 °C @ -10~40 °C
- Alarms
- Up to 6
- Interface
- USB 2.0
Overview
The PTD100 and PRH100 are compact multi-use dataloggers with display for temperature, or temperature and humidity. They offer up to six programmable alarm limits, a replaceable CR2450 battery and PDF / CSV reporting over USB.
Key features
- Real-time data display
- Up to 6 individually programmable alarm limits
- Replaceable long-life battery
- PDF / CSV reports via USB 2.0
- Web-based configuration (config.polwax.it)
Technical specifications
Measurement ranges & outputs
| Input parameters | PTD100: Temperature · PRH100: Temperature, Humidity |
|---|---|
| Measuring range | -30 to 70 °C (PRH100: & RH 0–100 %) |
| Measurement accuracy – PTD100 | ±0.4 °C @ -10~40 °C, ±0.8 °C @ -30~-10 °C & 40~70 °C |
| Measurement accuracy – PRH100 | ±0.4 °C & ±2.5 % RH @ 20–80 % RH, ±4 % RH @ other |
General
| Display | With display |
|---|---|
| Alarm limits | Up to 6 individually programmable alarm limits |
| Logging interval | 1 minute – 24 hours (default 5 minutes) |
| Start delay | 0 minutes – 24 hours (default 10 minutes) |
| Start mode | Manual / auto start |
| Report format | PDF / CSV / PDF & CSV (optional, configured before leaving the factory) |
| LED indicator | Green (recording, OK), red (alarm) |
| Language | English |
Power supply & connectivity
| Connection | USB 2.0 |
|---|---|
| Configuration | Web-based application: config.polwax.it |
| Battery type | 3.0 V CR2450 (replaceable) |
| Battery life | Up to 2 years (1 year storage / 1 year useful life) @ 25 °C, 5 minutes logging interval |
Installation & environment
| Protection class | PTD100: IP65 · PRH100: IP54 (ABS body) |
|---|
Models
| Model | Part code | Parameters | Protection |
|---|---|---|---|
| PTD100 | 0394 0100 | Temperature | IP65 |
| PRH100 | 0394 0200 | Temperature, Humidity | IP54 |
Specifications are subject to change. Please check the current datasheet or ask our team before ordering.
Applications & industries
Scope of supply
- Datalogger
- Test certificate
- Instruction manual
