Multi-Use Dataloggers · Multi-Use USB Dataloggers

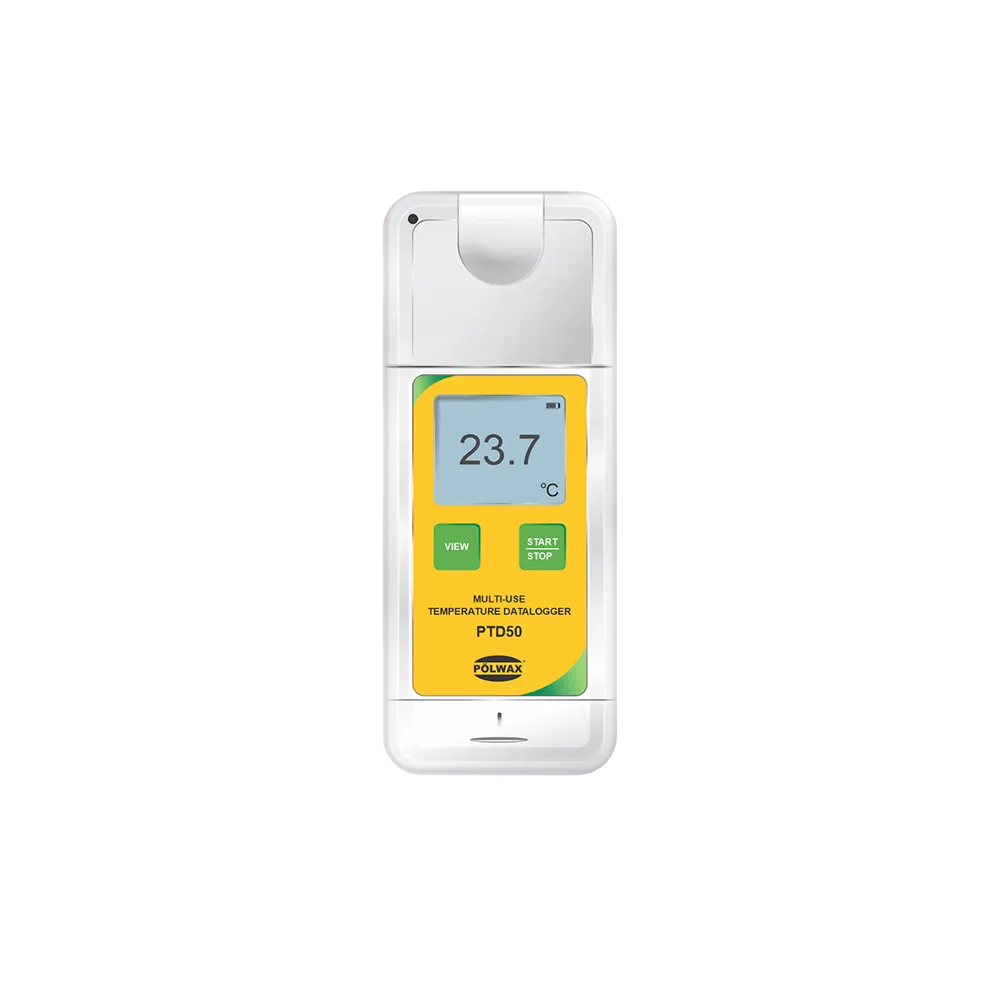

PTD50 / PRH50 Multi-Use Datalogger

Model PTD50 / PRH50

Reusable temperature (PTD50) and temperature/humidity (PRH50) USB dataloggers with LCD display, up to 6 alarms and replaceable battery.

Range: -30 to 70 °C (PRH50: + 0–100 % RH)
Accuracy: ±0.4 °C @ -10~40 °C
Alarms: Up to 6
Memory: 33,000 points

Request a Quote Request Datasheet Polwax Config web application (opens in a new tab)

Overview

The PTD50 (temperature) and PRH50 (temperature and humidity) are reusable USB dataloggers with display for storage, transport and cold-chain monitoring. They store up to 33,000 points and generate PDF and/or CSV reports automatically when connected to USB.

Recording settings and up to six alarm limits are configured in the Polwax Config web application; the CR2450 battery is replaceable.

Key features

Multi-use with replaceable battery
Display and LED status indication
Up to 6 individually programmable alarm limits
Automatic PDF / CSV report via USB 2.0
Manual or automatic start
Web-based configuration (config.polwax.it)

Technical specifications

Measurement ranges & outputs

Measurement ranges and outputs
Input parameters	PTD50: Temperature · PRH50: Temperature, Humidity
Measuring range	-30 to 70 °C (PRH50: & RH 0–100 %)
Measurement accuracy – PTD50	±0.4 °C @ -10~40 °C, ±0.8 °C @ -30~-10 °C & 40~70 °C
Measurement accuracy – PRH50	±0.4 °C (±2.5 % RH @ 20–80 % RH, ±4 % RH @ other)
Resolution	0.1 °C (PRH50: 0.1 % RH)

General

General specifications
Memory	Up to 33,000 points
Alarm limits	Up to 6 individually programmable alarm limits
Logging interval	1 minute – 24 hours (default 5 minutes)
Start delay	0 minutes – 24 hours (default 10 minutes)
Start mode	Manual / auto start
Report generation	Automatic & selectable (PDF / CSV / both)
LED indicator	Green (recording, OK), red (alarm)
Display	With display
Language	English

Power supply & connectivity

Power supply and connectivity
Connection	USB 2.0
Configuration	Web-based application: config.polwax.it
Battery type	3.0 V CR2450 (replaceable)
Battery life	Up to 2 years (1 year storage / 1 year useful life) @ 25 °C, 5 minutes logging interval

Installation & environment

Installation and environment
Protection class	IP65 (ABS body)
Dimensions	102.5 × 40 × 13.5 mm
Weight	35.6 g

Models

Model	Part code	Parameters
PTD50	0394 0050	Temperature
PRH50	0394 0051	Temperature, Humidity

Specifications are subject to change. Please check the current datasheet or ask our team before ordering.

Applications & industries

Pharmaceutical cold chain
Food & cold storage
Blood banks & healthcare
Logistics & warehousing
Laboratories & biotech
HVAC & cleanroom monitoring

Scope of supply

Datalogger
Test certificate
Instruction manual
