CO₂ & CO Transmitters · Atmos Series

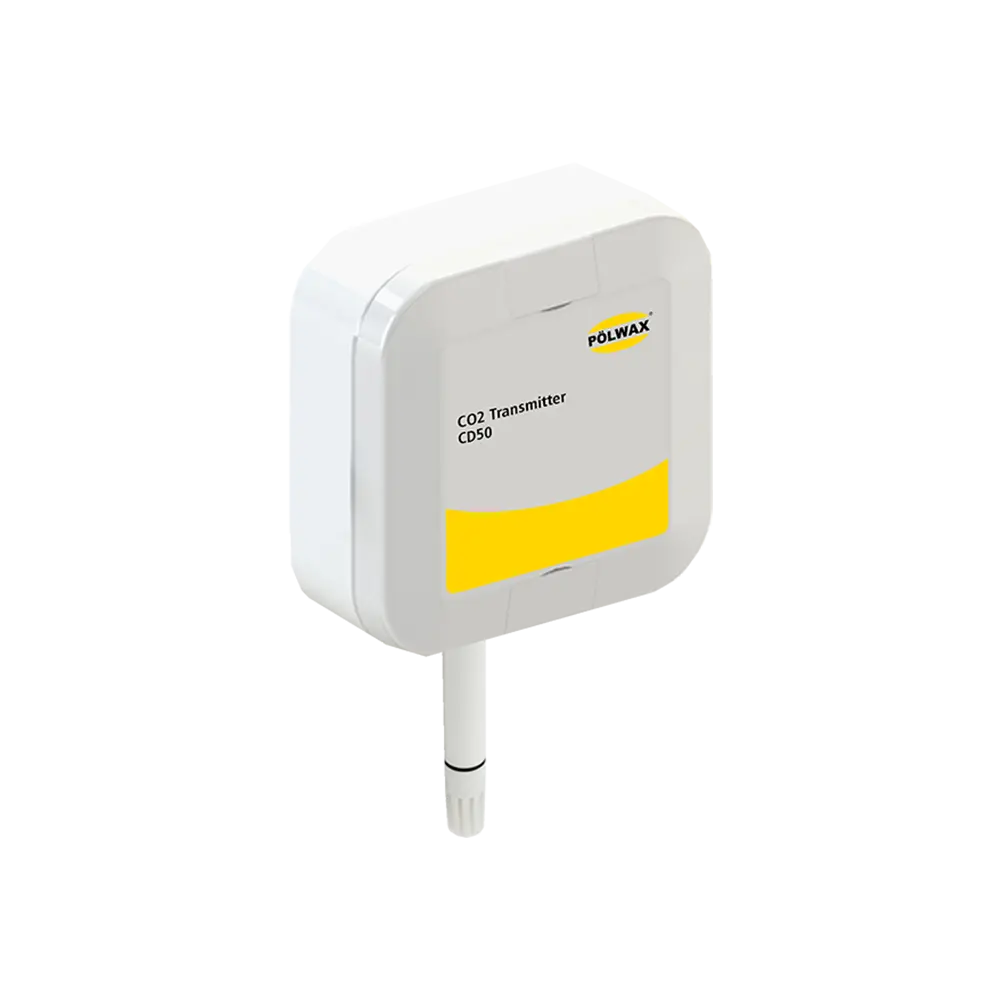

CD50 CO₂ Transmitter
Model CD50 (CarbonDio50)
Carbon dioxide transmitter with 0–2000, 0–5000 or 0–10000 ppm range and 4–20 mA, 0–10 V or RS485 Modbus RTU output.
- Range
- 0–2000 / 5000 / 10000 ppm
- Resolution
- 1 ppm
- Outputs
- 4–20 mA, 0–10 V, RS485
- Protection
- IP65
Overview
The POLWAX CD50 (CarbonDio50) measures carbon dioxide for indoor air quality management in offices, schools and public spaces, CO₂ control in greenhouses, and safety monitoring in confined spaces and manufacturing environments.
Key features
- Ranges 0–2000, 0–5000 or 0–10000 ppm
- Resolution 1 ppm, data update every 2 s
- 4–20 mA, 0–10 V or RS485 Modbus RTU output
- Wall or pole mounting, IP65
Technical specifications
Measurement ranges & outputs
| Measurement range | 0 - 2000 ppm (code 101) / 0 - 5000 ppm (code 102) / 0 - 10000 ppm (code 103) |
|---|---|
| Accuracy | 5000 ppm: ±(50 ppm + 3 % F·S) (25 °C) · 10000 ppm: ±(50 ppm + 5 % F·S) (25 °C) |
| Resolution | 1 ppm |
| Stability | <2 % F·S |
| Non-linearity | <1 % F·S |
| Data update | 2 s |
| Warm-up time | 2 min (available), 10 min (max.) |
| Output (order code) | 0-10 V, RS485 Modbus RTU, 4-20 mA |
Power supply & connectivity
| Power supply | 12 V – 24 V DC |
|---|
Installation & environment
| Mounting options | Wall mount, pole mount |
|---|---|
| Housing material | Industrial-grade ABS |
| Protection rating | IP65 (water-resistant and dustproof) |
| Humidity range | 0–95 % RH (non-condensing) |
Specifications are subject to change. Please check the current datasheet or ask our team before ordering.
Applications & industries
Product enquiry
Request a quote for CD50 CO₂ Transmitter
Tell us about your application — what you need to measure, the range, number of points and where the instrument will be installed. Our team will reply with a recommendation and quotation.
- Technical advice on model and options
- Quotation for your quantity
- Datasheets and documentation on request
Related POLWAX products
All transmitters
Atmos Series

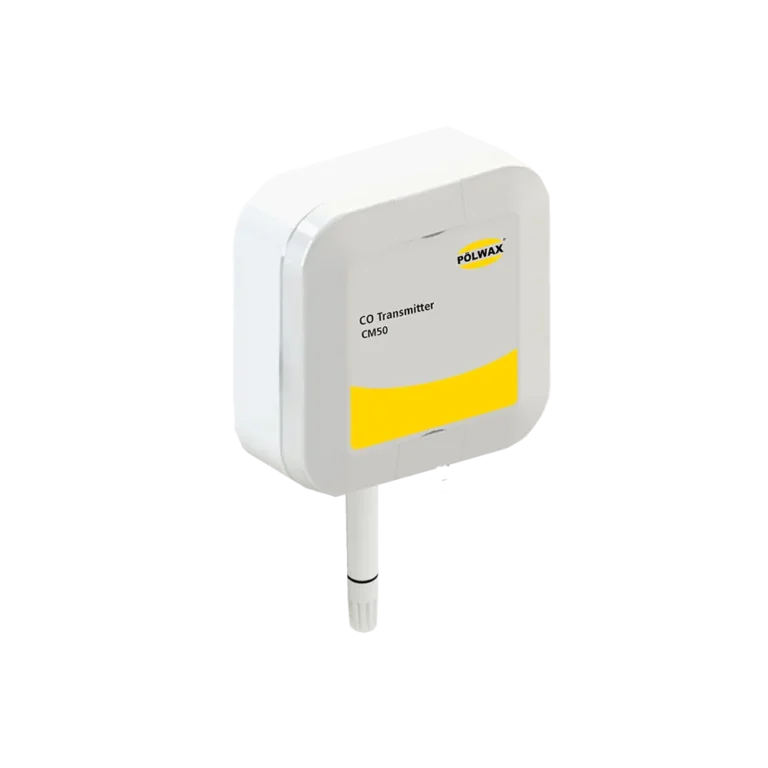

CM50 CO (Carbon Monoxide) Transmitter
Model CM50
Carbon monoxide gas detector and transmitter, 0–1000 or 0–2000 ppm, ±5 ppm, for car parks, tunnels and plant rooms.
- Range
- 0–1000 / 0–2000 ppm
- Accuracy
- ±5 ppm
- Outputs
- 4–20 mA, 0–10 V, RS485
- Supply
- 10–30 V DC
Applications: Underground parking garages · Tunnels · Mechanical & boiler rooms
ClimaTRANS
ClimaTRANS RHT100 Temperature & Humidity Transmitter
Model RHT100
Industrial temperature and humidity transmitter with TFT display, RS485 Modbus RTU and wall or duct mounting.
- Accuracy
- ±0.3 °C · ±1.8 % RH
- Output
- RS485 Modbus RTU
- Display
- TFT
- Protection
- IP65
Applications: HVAC systems & BMS integration · Cleanrooms & pharmaceutical environments · Warehouses & cold storage
Weather Station

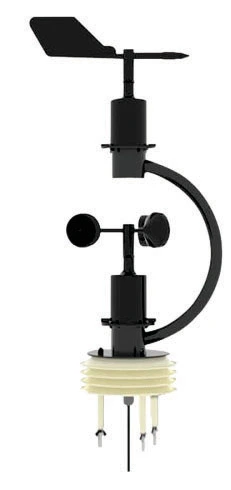

PLXWS800 Integrated Weather Station
Model PLXWS800
All-in-one weather station: wind speed and direction, temperature, humidity, pressure, noise and PM2.5/PM10 or CO₂ via RS485 Modbus RTU.
- Parameters
- Wind, T, RH, pressure, noise, PM or CO₂
- Interface
- RS485 Modbus RTU
- Supply
- 10–30 VDC, ≤ 0.8 W
- Protection
- IP65
Applications: Smart-city weather & air-quality monitoring · Industrial zone environmental monitoring · Agriculture
RHT Series
RHT50 WM Temperature & Humidity Transmitter
Model RHT50 WM
Wall-mount temperature and humidity transmitter with two analogue outputs and RS485 Modbus RTU.
- Accuracy
- ±0.4 °C · ±1.8 % RH
- Outputs
- 4–20 mA / 0–10 V, RS485
- Supply
- 12–30 Vdc
- Size
- 75 × 35 × 75 mm
Applications: Agriculture & greenhouses · Storage & warehouses · Museums & buildings
