Lux / Light Intensity Transmitters · Atmos Series

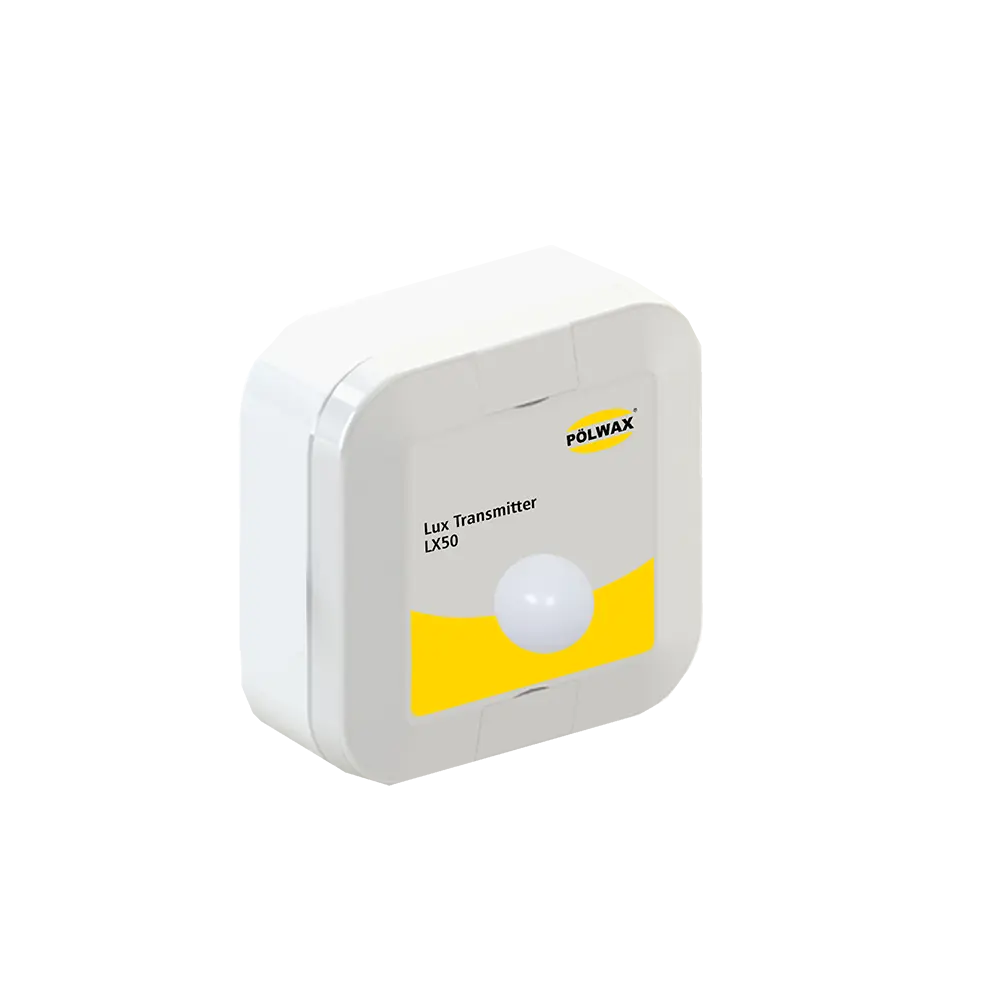

LX50 Lux / Light Intensity Transmitter
Model LX50
Light intensity transmitter, 0–65,000 or 0–200,000 lx, ±2 % of reading, analogue and RS485 Modbus RTU outputs.
- Range
- 0–65,000 / 0–200,000 lx
- Accuracy
- ±2 % of reading
- Outputs
- 4–20 mA, 0–10 V, RS485
- Protection
- IP65
Overview
The POLWAX LX50 measures light intensity for industrial automation, environmental monitoring and smart lighting — in buildings, greenhouses, warehouses, museums and factories. Two measuring ranges are available, with 4–20 mA, 0–10 V or RS485 Modbus RTU output.
Key features
- Ranges 0–65,000 lx or 0–200,000 lx
- Accuracy ±2 % of reading, resolution 1 lux
- 4–20 mA, 0–10 V or RS485 Modbus RTU output
- Wall, pole or DIN-rail mounting
- IP65 housing
Technical specifications
Measurement ranges & outputs
| Measurement range | 0 - 65000 lx (code 101) / 0 - 200000 lx (code 102) |
|---|---|
| Accuracy | ±2 % of reading |
| Resolution | 1 lux |
| Sensor type | High-precision photodiode |
| Output options | 4-20 mA, 0-10 V, RS485 (Modbus RTU) |
Power supply & connectivity
| Power supply | 12 V – 24 V DC |
|---|
Installation & environment
| Mounting options | Wall mount, pole mount, DIN rail |
|---|---|
| Housing material | Industrial-grade ABS / aluminium alloy |
| Protection rating | IP65 (water-resistant and dustproof) |
| Operating temperature | -10 °C to 60 °C |
| Storage temperature | -20 °C to 80 °C |
| Humidity range | 0–95 % RH (non-condensing) |
Order code
| Code | Option |
|---|---|
| Output 00 | 0-10 V |
| Output 01 | RS485 |
| Output 02 | 4 - 20 mA |
| Range 101 | 0 - 65000 lx |
| Range 102 | 0 - 200000 lx |
Customised range available on request.
Specifications are subject to change. Please check the current datasheet or ask our team before ordering.
Applications & industries
Product enquiry
Request a quote for LX50 Lux / Light Intensity Transmitter
Tell us about your application — what you need to measure, the range, number of points and where the instrument will be installed. Our team will reply with a recommendation and quotation.
- Technical advice on model and options
- Quotation for your quantity
- Datasheets and documentation on request
